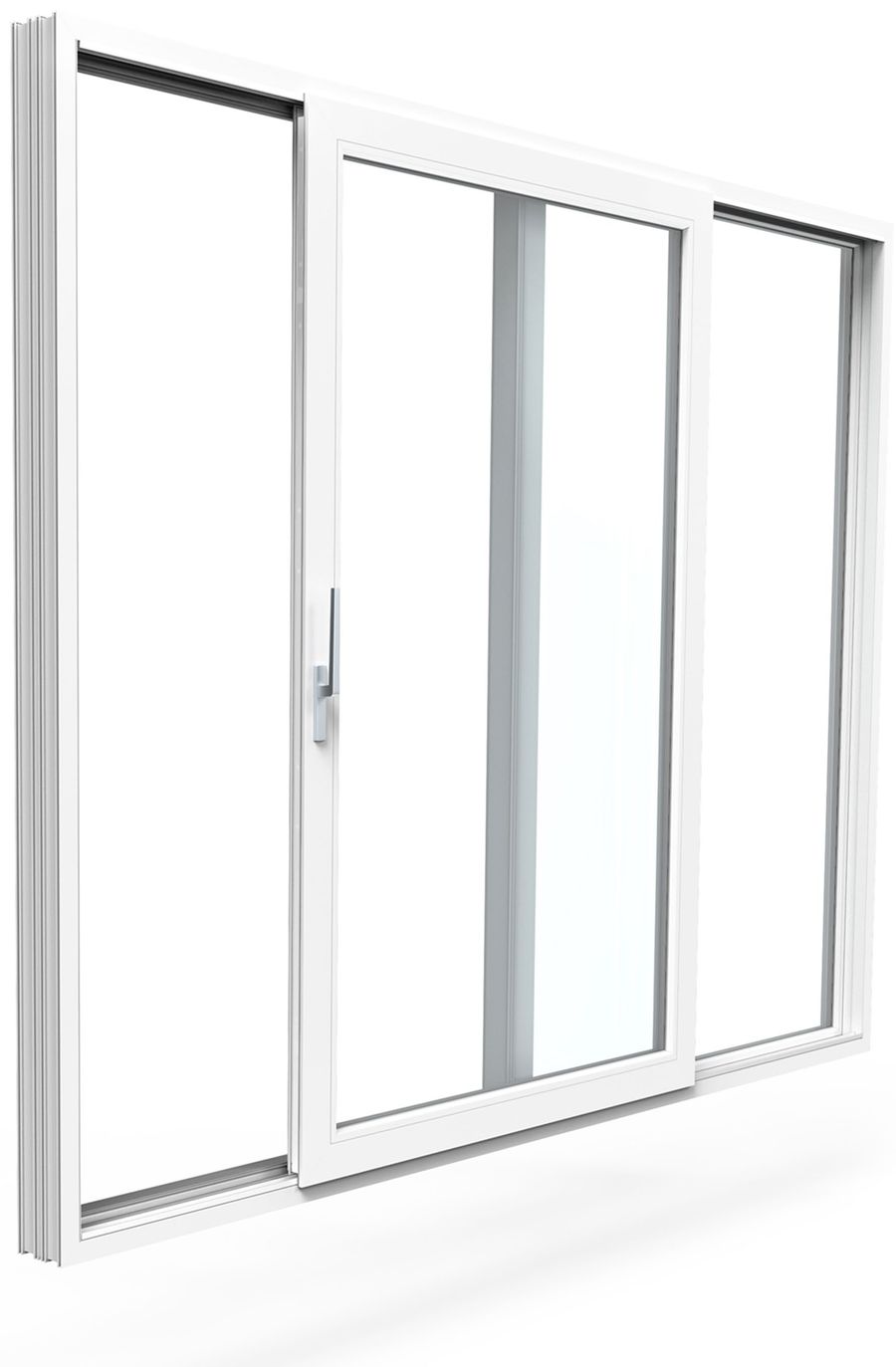

VEKAMOVE 76 sliding doors and windows
A sliding system for compact rooms: the sash does not swing into the room but slides along the wall, giving you more usable space and daylight.
76 mminstallation depth
0.817door Ud (W/m²K)
RC 2standard security
3sealing levels
Advantages
One turn of the handle moves the sash a few millimetres away from the frame so it slides easily; when locked, it presses firmly back against the seals. VEKAMOVE 76 is the only 76 mm sliding system with a standard centre seal.
- Saves space: the sash takes no room inside
- Circumferential centre seal: a third sealing level
- RC 2 burglary resistance as standard
- Glazing up to 48 mm, triple glazing as standard
- Class A profiles to DIN EN 12608
- Available as sliding door or sliding window
Technical data
| Installation depth | 76 mm |
|---|---|
| Sealing | circumferential centre seal, 3 levels |
| Glazing thickness | up to 48 mm |
| Door insulation | Ud = 0.817 W/m²K (element 3.00 × 2.40 m) |
| Window insulation | Uw = 0.831 W/m²K (element 2.50 × 1.25 m) |
| Burglary resistance | RC 2 as standard |
| Opening schemes | A (1 sliding sash + fixed), C and K (2 sliding + 2 fixed) |
| Profile quality | Class A to DIN EN 12608 |
Values are taken from VEKA technical documentation and depend on design, size and glazing. We state exact figures for your project in our quote.
Best for
- flats and smaller rooms with limited space

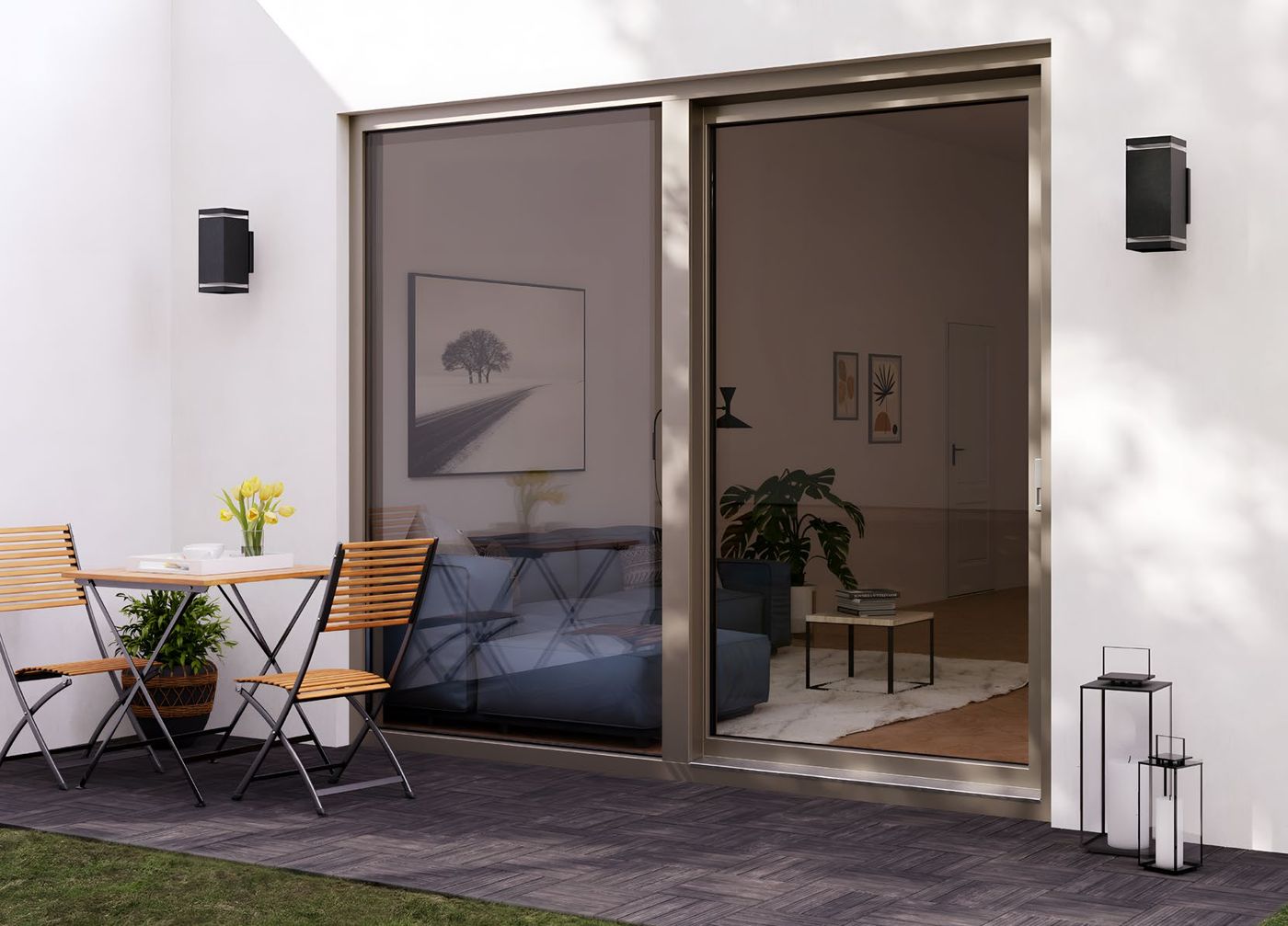

- access to balconies or terraces
- replacing old balcony doors without losing space
Colours and finishes
White, more than 60 colours and decors (wood-grain, anthracite, metallic), aluminium cladding in RAL colours and the ultra-matt VEKA SPECTRAL surface.
Request a quote
We measure on site free of charge, recommend the right system and send you an offer.
