VEKAMOTION 82 lift-and-slide doors

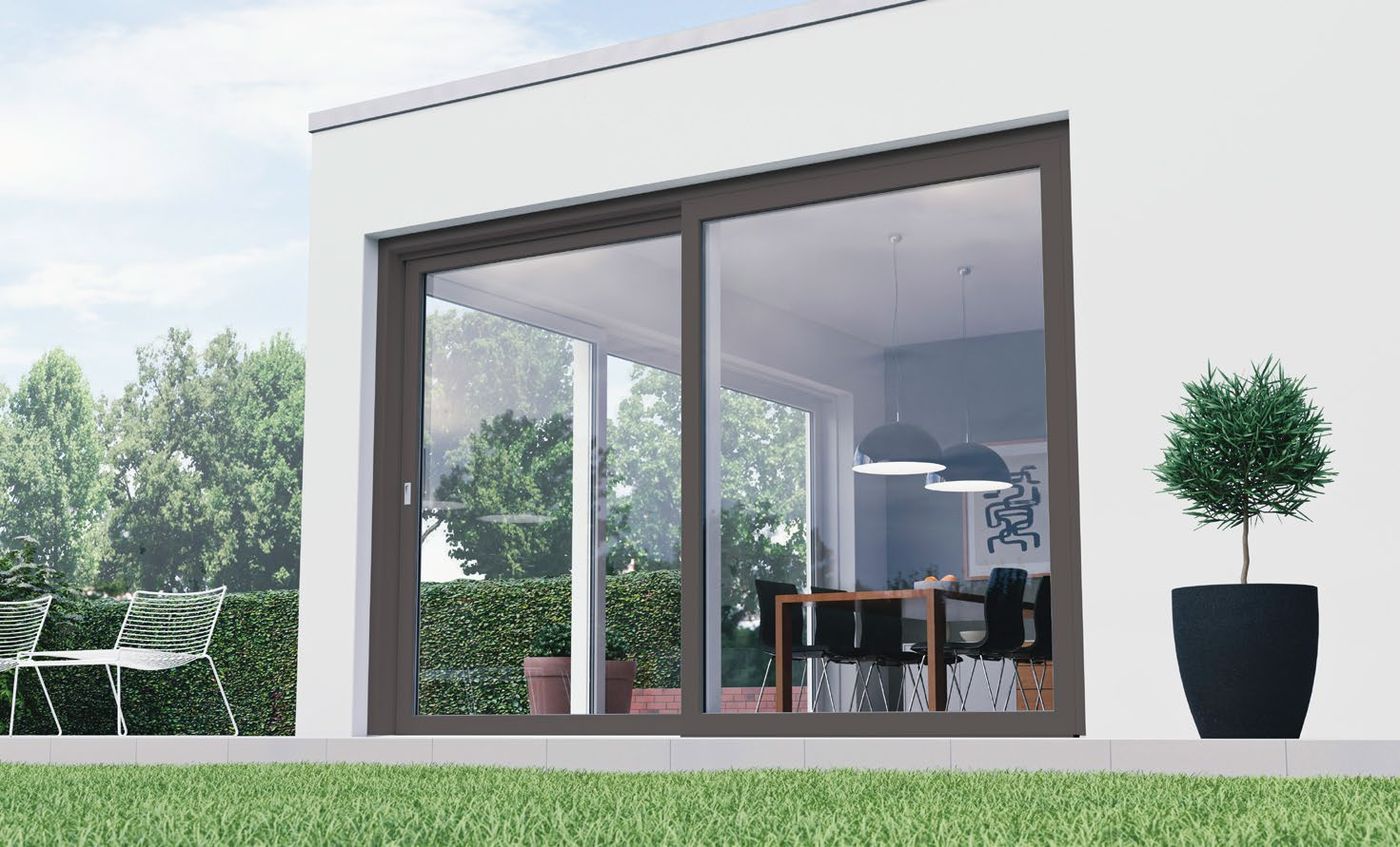

Large glass walls up to 6 metres wide: more daylight, unobstructed views and easy access to the terrace or garden.
6.0 mmax. element width
0.76Ud down to (W/m²K)
86 mmfixed sash height
RC 2burglary resistance
Advantages

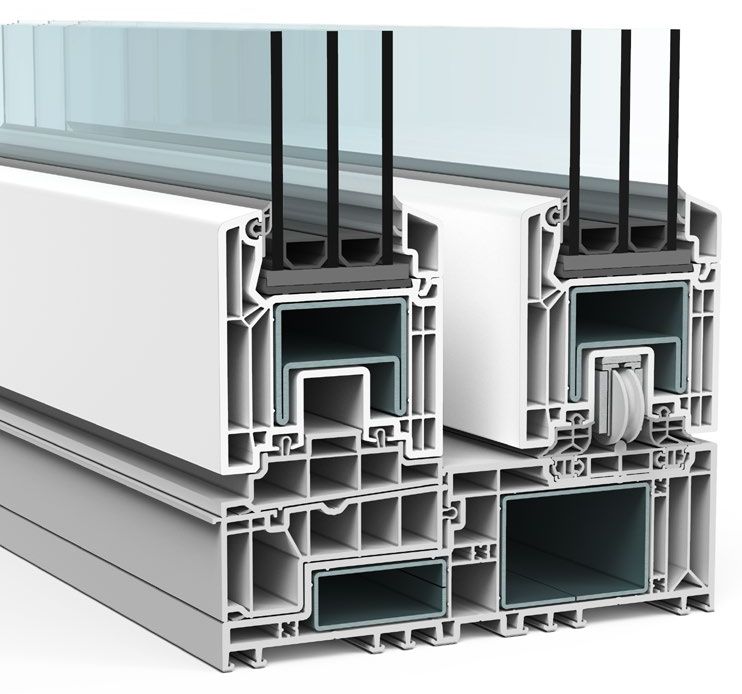

The sash lifts with the handle and glides almost effortlessly, then presses firmly against a multi-stage seal system when closed. Two large steel reinforcements in the frame carry even the heaviest triple glazing.
- Slim profiles: fixed sash only 86 mm high, more glass
- Barrier-free threshold possible
- Multi-stage sealing against wind and driving rain
- Large steel reinforcements in frame and sashes
- Class A profiles with 3 mm outer walls
- The sash never swings into the room
Technical data
| Installation depth | sash 82 mm, frame 194 mm |
|---|---|
| Max. element size | 6000 × 2700 mm |
| Glazing thickness | up to 54 mm |
| Element insulation | Ud down to 0.76 W/m²K (triple glazing) |
| Frame insulation | Uf,m 1.4 W/m²K |
| Fixed sash height | 86 mm |
| Burglary resistance | RC 2 (with suitable hardware and glazing) |
| Profile quality | Class A to EN 12608, 3 mm outer wall |
Values are taken from VEKA technical documentation and depend on design, size and glazing. We state exact figures for your project in our quote.
Best for
- large glass walls to a terrace or garden
- modern homes with plenty of daylight
- barrier-free living and easy access
Colours and finishes
White, more than 60 colours and decors (wood-grain, anthracite, metallic), aluminium cladding in RAL colours and the ultra-matt VEKA SPECTRAL surface.
Request a quote
We measure on site free of charge, recommend the right system and send you an offer.
