VEKA SOFTLINE 76 MD
Our recommended system for most houses and flats: excellent thermal insulation, slim profiles and the best value for money.
Advantages

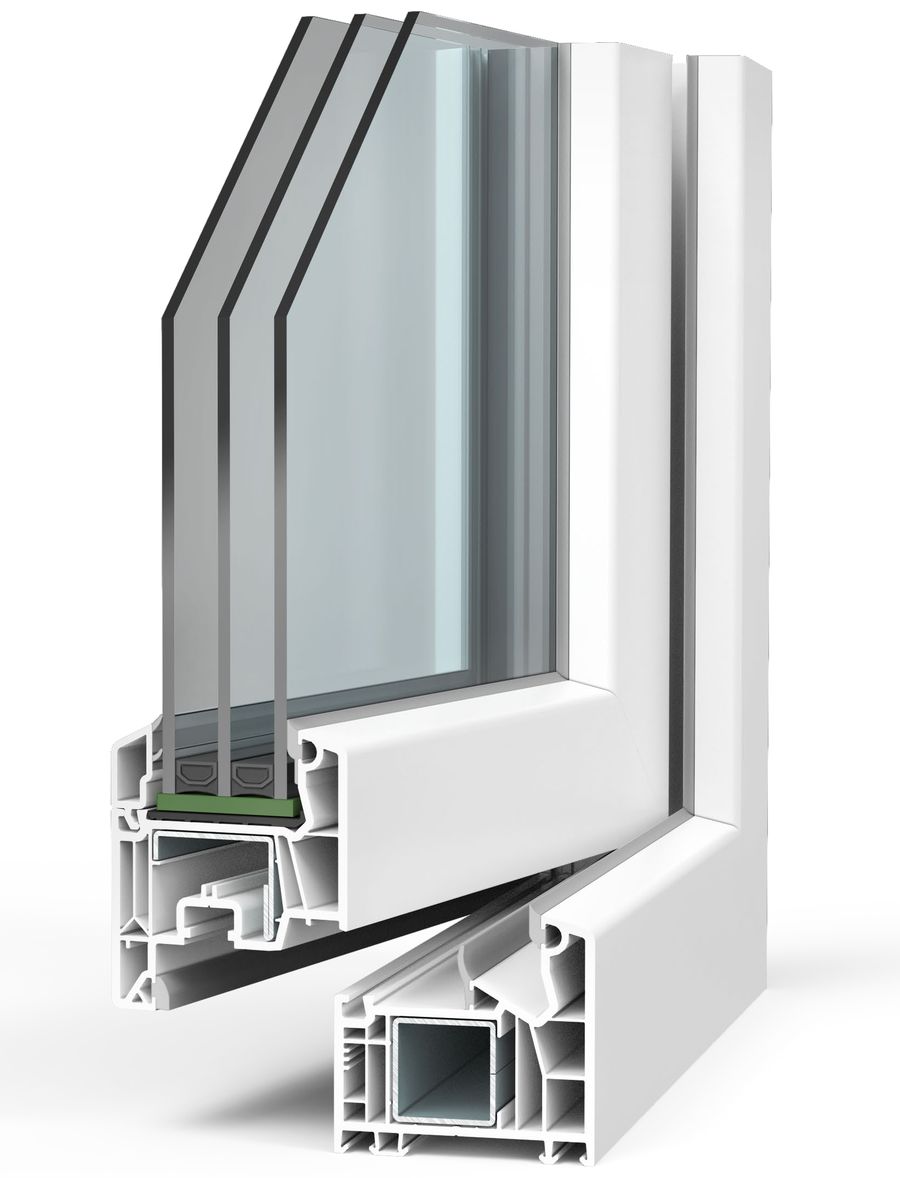

SOFTLINE 76 MD is a modern 76 mm multi-chamber system with a centre seal (MD). The deep 28 mm glazing rebate and three sealing levels keep the heat in and draughts, moisture and condensation out.
- Class A profile to EN 12608: 3 mm outer walls, 2.7 mm walls in the hardware zone
- Steel reinforcement for stability, even in large windows
- Takes triple, acoustic and safety glazing up to 48 mm
- Burglary resistance up to RC 2 with suitable hardware
- Smooth surface, easy to clean, never needs painting
- Almost 100% recyclable

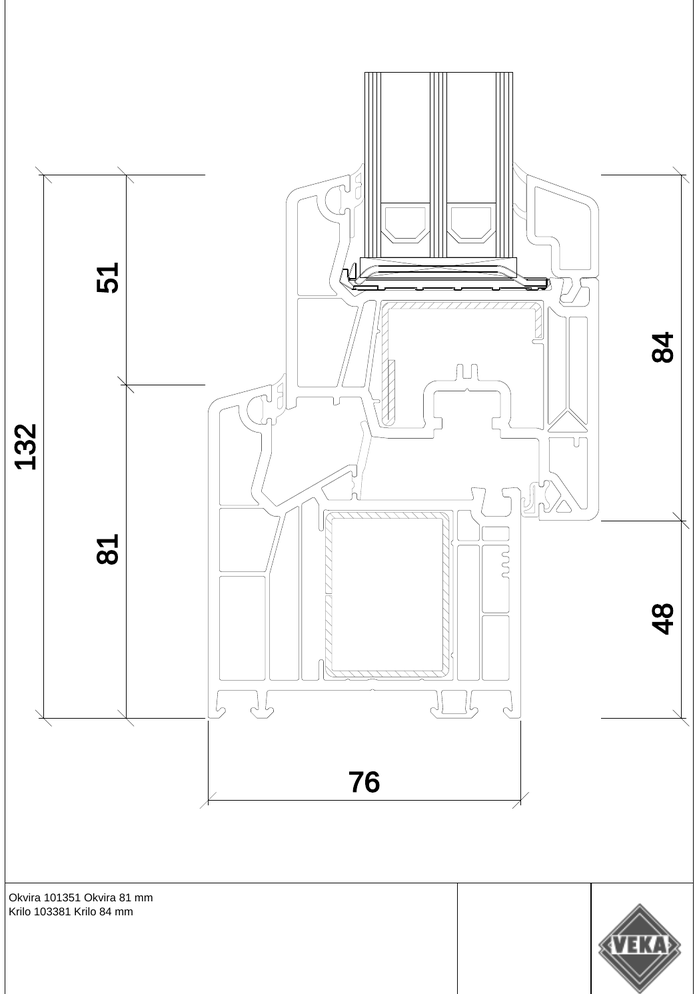

proMATIC design: reinforced frame and sash
In the proMATIC version of SOFTLINE 76 MD we use a wider frame (81 mm) and sash (84 mm) instead of the slimmest standard profiles. The total visible width of frame and sash is 132 mm.
- higher stiffness and stability
- safer support for heavy triple glazing
- better hold for the hardware and smooth opening for years
- reliable operation even with large sashes and balcony doors
Technical data
| Installation depth | 76 mm |
|---|---|
| proMATIC version | frame 81 mm + sash 84 mm (132 mm in total) |
| Sealing | centre seal, 3 levels |
| Glazing rebate | 28 mm |
| Glazing thickness | 18–48 mm |
| Profile insulation | Uf down to 1.1 W/m²K |
| Window insulation | Uw down to 0.75 W/m²K (triple glazing) |
| Burglary resistance | up to RC 2 (with suitable hardware) |
| Profile quality | Class A to EN 12608, 3 mm outer wall |
Values are taken from VEKA technical documentation and depend on design, size and glazing. We state exact figures for your project in our quote.
Best for

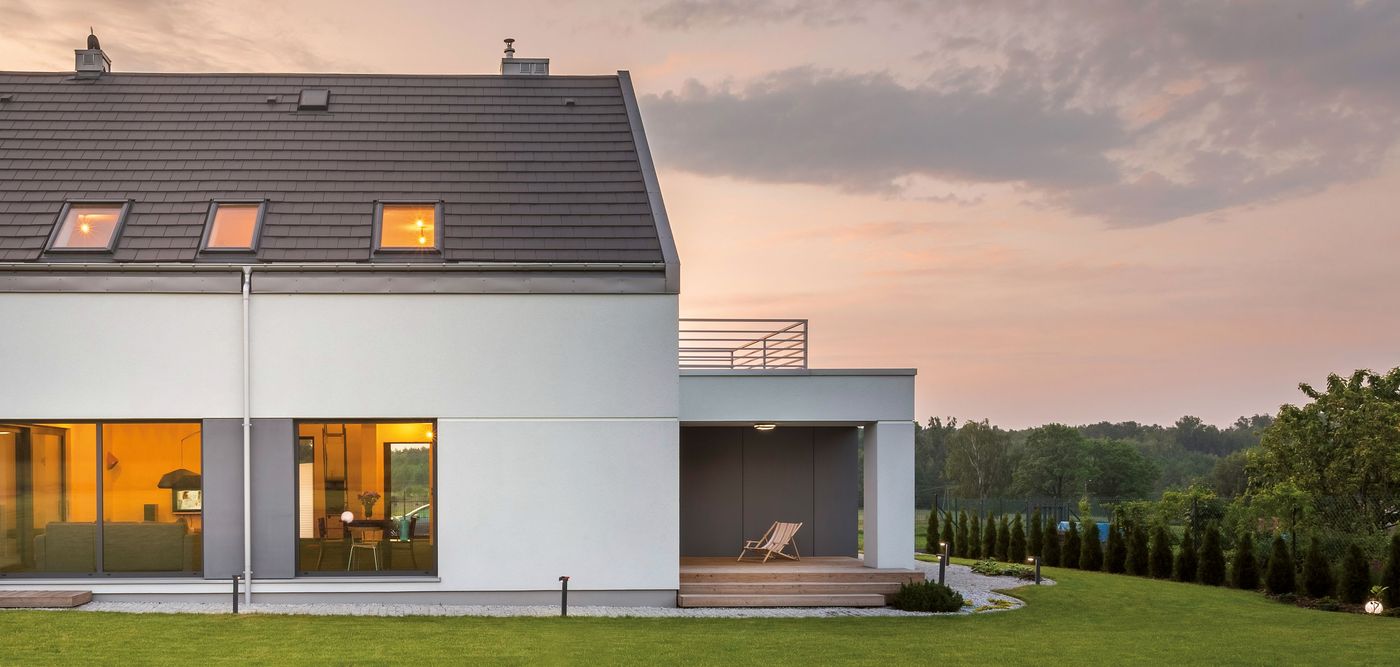

- replacing old windows in flats and houses
- new builds with standard insulation requirements
- windows, balcony doors and entrance doors from one system
Colours and finishes
White, more than 60 colours and decors (wood-grain, anthracite, metallic), aluminium cladding in RAL colours and the ultra-matt VEKA SPECTRAL surface.
Request a quote
We measure on site free of charge, recommend the right system and send you an offer.
