VEKA SOFTLINE 82 MD
Our highest-performing window system: passive-house insulation, strong sound protection and stability for large glazed areas.
Advantages

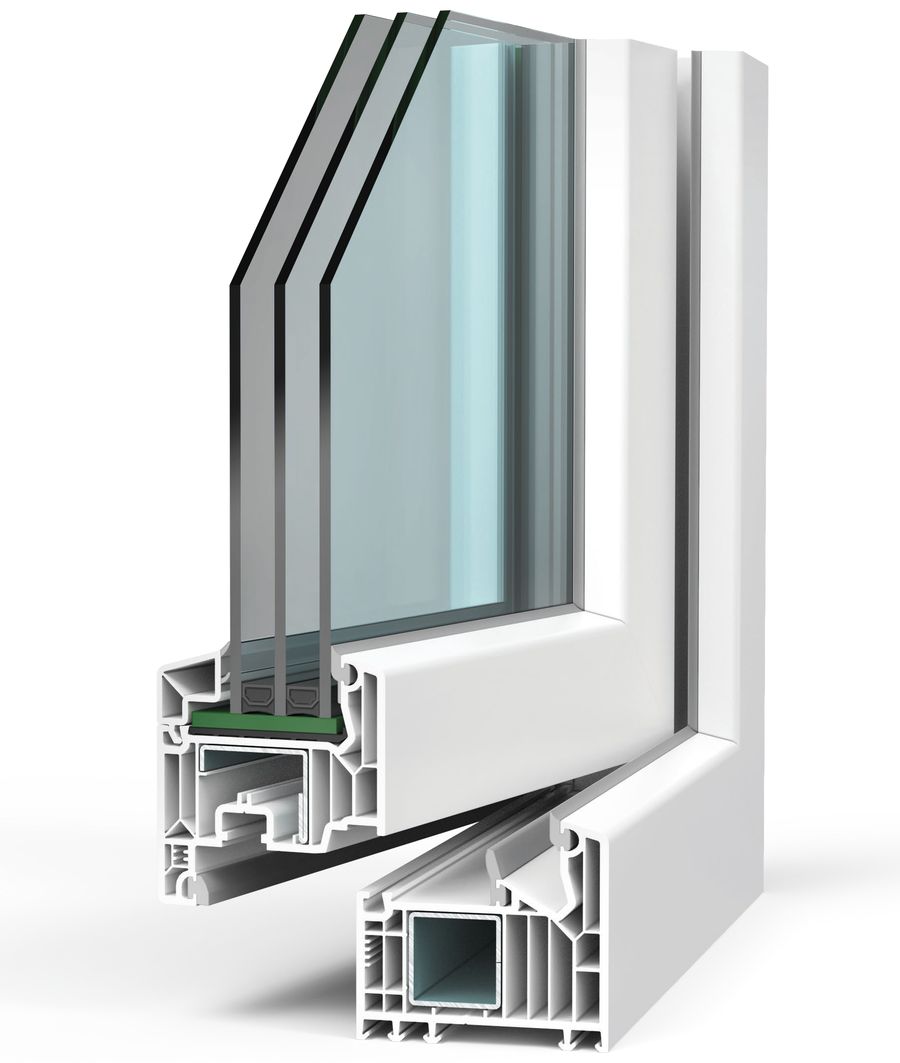

SOFTLINE 82 MD combines 82 mm multi-chamber insulation with a centre seal. The result: windows for low-energy up to passive houses, with no draughts, cold surfaces or condensation at the glass edge.
- Thermal insulation at passive-house level
- Class A profile to EN 12608 with steel reinforcement
- Glazing from 24 to 54 mm, set 28 mm deep
- Strong sound insulation even in the standard version
- Burglary resistance up to RC 2 with suitable hardware
- Almost 100% recyclable

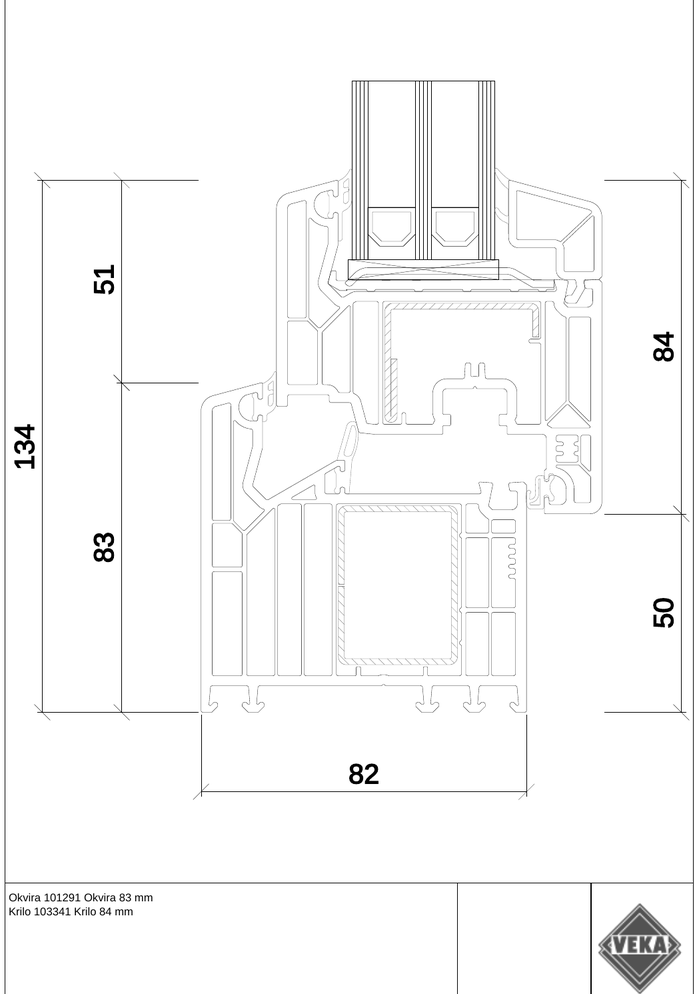

proMATIC design: reinforced frame and sash
In the proMATIC version of SOFTLINE 82 MD we use a wider frame (83 mm) and sash (84 mm). The total visible width of frame and sash is 134 mm.
- higher stiffness and stability
- safer support for heavy triple glazing
- better hold for the hardware and smooth opening for years
- reliable operation even with large sashes and balcony doors
Technical data
| Installation depth | 82 mm |
|---|---|
| proMATIC version | frame 83 mm + sash 84 mm (134 mm in total) |
| Sealing | centre seal, 3 levels |
| Glazing rebate | 28 mm |
| Glazing thickness | 24–54 mm |
| Profile insulation | Uf down to 1.0 W/m²K |
| Window insulation | Uw down to 0.74 W/m²K (triple glazing) |
| Burglary resistance | up to RC 2 (with suitable hardware) |
| Profile quality | Class A to EN 12608, 3 mm outer wall |
Values are taken from VEKA technical documentation and depend on design, size and glazing. We state exact figures for your project in our quote.
Best for

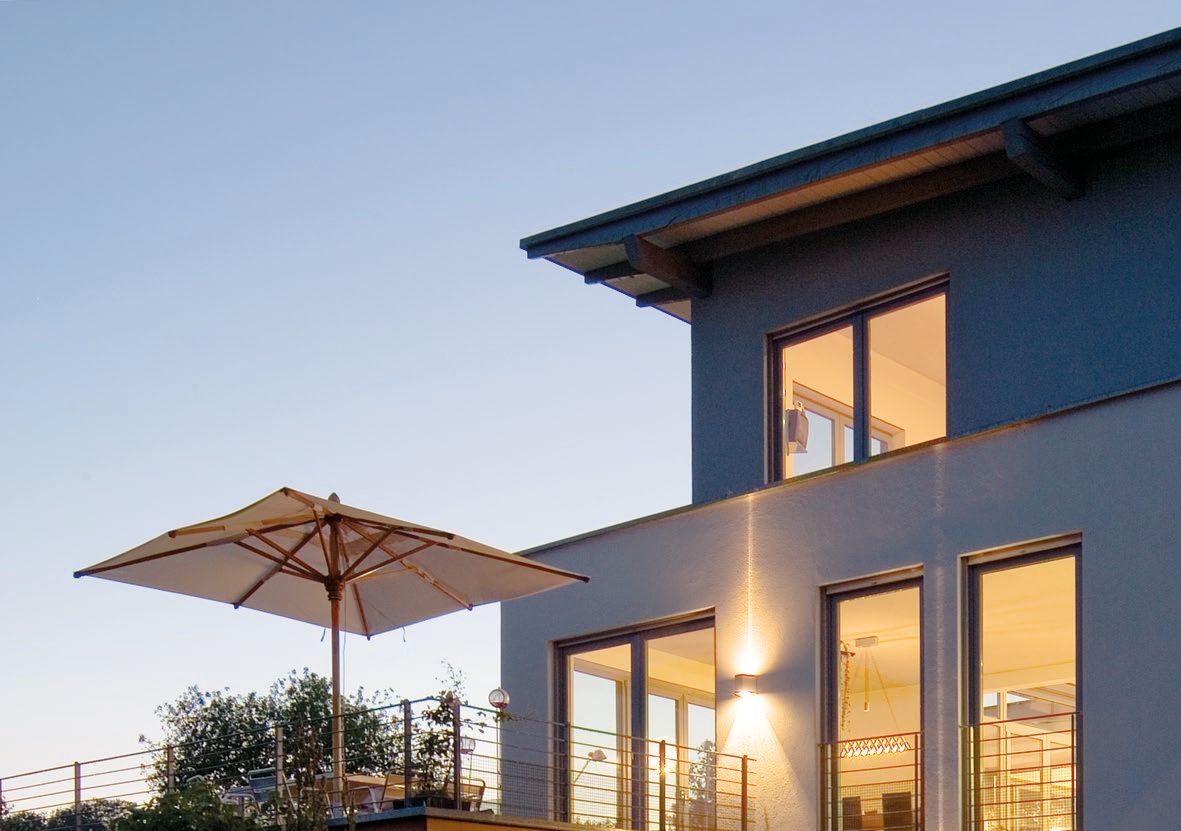

- low-energy and passive houses
- buildings on busy roads
- large windows where stability is key
Colours and finishes
White, more than 60 colours and decors (wood-grain, anthracite, metallic), aluminium cladding in RAL colours and the ultra-matt VEKA SPECTRAL surface.
Request a quote
We measure on site free of charge, recommend the right system and send you an offer.
